X-100
Professional standard portable spectrometer for plant lighting
- Professional spectral measurement
- PPFD and PAR analysis
- Portable instrument design
Portable Spectrometer
Reliable Spectral Measurement for Everyday Field Work
The X-100 is a professional portable spectrometer for growers, lighting consultants, and facility teams who need dependable spectral measurement without a complex lab workflow.
Technical advantages
Key Technical Advantages
A compact measurement platform for modern horticulture lighting teams.
Fast field capture
Compare fixtures, recipes, and canopy positions with a streamlined measurement workflow.
PAR-ready reporting
Core horticulture indicators are organized for quick fixture checks and light recipe validation.
Portable reliability
A rugged workflow keeps daily quality checks consistent across growing zones.

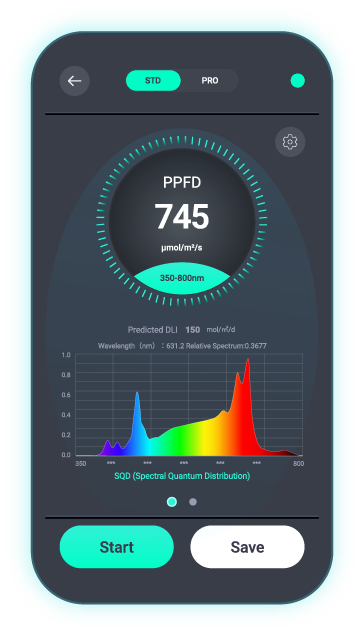

XPAR Analyzer App
Turn Your Phone Into a Real-Time Sensor Analyzer.
General Mode
Real-time PPFD, TPFD, PFD of different wavelength, illumination, and fundamental light data.
PAR Map Mode
Detailed maps to visualize light distribution and uniformity.
Custom Waveband Analysis
Define specific wavelength ranges for tailored monitoring.
Auto Mode
Long-term tracking of key metrics to help you identify and respond to light variations.
Specifications
Technical Specifications
Optical
- Spectral Range
- 350-1050 nm
- Spectral Resolution
- 1 nm
- Cosine Response
- +/-5% at 75 degree zenith
- Source Compatibility
- LED, HPS, fluorescent, sunlight
- Spectral Repeatability
- ≥ 0.999
- Long-term Drift
- < 2% per year
- Non-linearity
- < 1% (within 6000 μmol/m²/s)
- Spectral Width (FWHM)
- < 6 nm
- Wavelength Repeatability
- ± 1 nm
- Directional Response
- ± 5% @ 75°
- Tilt Error
- < 0.5%
- Temperature Response
- < 0.15% /°C
- Daily Total Uncertainty
- < 5%
- Sensor Operating Temperature
- -10 to 50 °C
- Sensor Operating Humidity
- < 90% RH (non-condensing)
Physical
- Use Case
- Portable field measurement
- Display
- Mobile app assisted
- Data Export
- CSV placeholder
Electrical
- Data Output Connector
- Aviation connector (via Type-C adapter)
- Power Consumption
- 200 mW
- Operating Voltage
- 3.3 V
- Operating Current
- 60 mA
- Warranty
- 3 years against defects in materials and workmanship
Relative Response to Photons
Flat spectral response from 350–1050 nm, maintaining ≥98% relative sensitivity across the full PAR and far-red range.
